OLED Display
REC001602AYPP5N00100

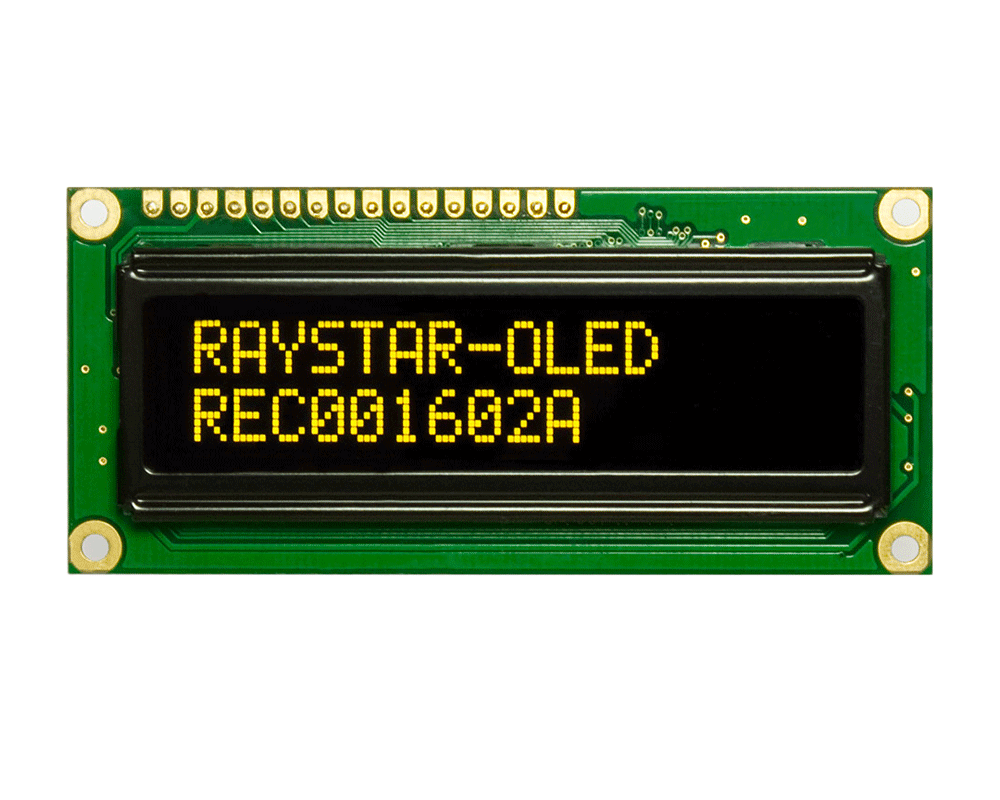

REC001602A is a 16 Characters x 2 Line COB OLED display module. The size of the active area is 2.29” diagonal with module dimension 80.0x36.0 mm. This 2.29 inches character OLED display 16x2 has built-in IC RS0010-TX, and boasts high contrast ratio 10,000 : 1. There are many interface options to choose from, including 6800, 8080, SPI interface. Logic supply voltage ranges from 4.8V-5.3V, the typical value is 5V. The available emitting colors are white, yellow, green, sky blue and red. REC001602AYPP5N00100 REC001602AYPP5N00000 REC001602AYPP3N00000
Görsel bilgi amaçlıdır. Kesin teknik özellikler için üretici datasheet'ini inceleyiniz.
Ürün Bilgileri
Temel ürün ve sipariş bilgileri
- Ürün Kodu
- REC001602AYPP5N00100
- Marka
-
Raystar OLED
- Açıklama
- REC001602A is a 16 Characters x 2 Line COB OLED display module. The size of the active area is 2.29” diagonal with module dimension 80.0x36.0 mm. This 2.29 inches character OLED display 16x2 has built-in IC RS0010-TX, and boasts high contrast ratio 10,000 : 1. There are many interface options to choose from, including 6800, 8080, SPI interface. Logic supply voltage ranges from 4.8V-5.3V, the typical value is 5V. The available emitting colors are white, yellow, green, sky blue and red. REC001602AYPP5N00100 REC001602AYPP5N00000 REC001602AYPP3N00000
- MOQMin. Sipariş Miktarı
- 100 pcs
- MPQMin. Paketleme Miktarı
- 10 pcs
- Teslim Süresi
- 10 Hafta
- Katalog
- PDF Datasheet
Teklif İste
REC001602AYPP5N00100 için talep bilgilerinizi gönderin.
