OLED Display
REG010016AYPP5N00100

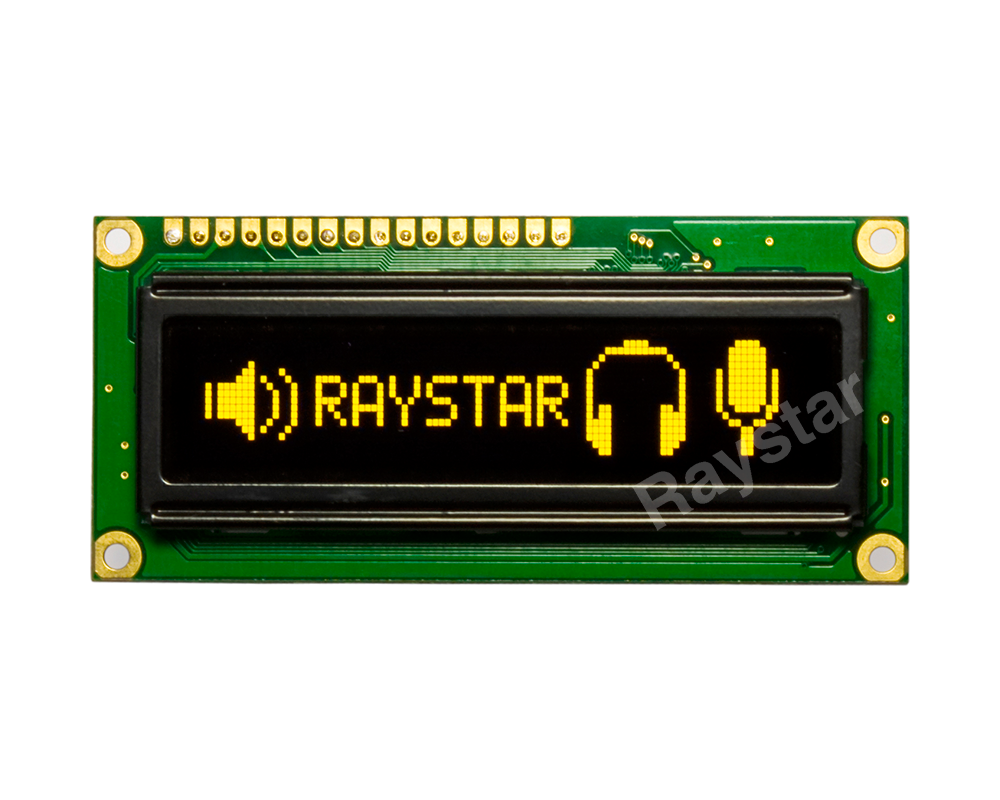

REG010016A is a dot matrix 100x16 COB graphic type OLED module. The size of the active area is 2.4” diagonal with module dimension 80.0x36.0 mm. This 2.4 inches OLED module has built-in IC RS0010-TX, and boasts high contrast ratio 10,000 : 1. There are many interface options to choose from, including 6800, 8080 and SPI interface. Logic supply voltage ranges from 4.8V-5.3V, the typical value is 5V. The available emitting colors are white, yellow, green, sky blue and red. REG010016AYPP5N00100 REG010016AYPP5N00000 REG010016AYPP3N00000
Görsel bilgi amaçlıdır. Kesin teknik özellikler için üretici datasheet'ini inceleyiniz.
Ürün Bilgileri
Temel ürün ve sipariş bilgileri
- Ürün Kodu
- REG010016AYPP5N00100
- Marka
-
Raystar OLED
- Açıklama
- REG010016A is a dot matrix 100x16 COB graphic type OLED module. The size of the active area is 2.4” diagonal with module dimension 80.0x36.0 mm. This 2.4 inches OLED module has built-in IC RS0010-TX, and boasts high contrast ratio 10,000 : 1. There are many interface options to choose from, including 6800, 8080 and SPI interface. Logic supply voltage ranges from 4.8V-5.3V, the typical value is 5V. The available emitting colors are white, yellow, green, sky blue and red. REG010016AYPP5N00100 REG010016AYPP5N00000 REG010016AYPP3N00000
- MOQMin. Sipariş Miktarı
- 100 pcs
- MPQMin. Paketleme Miktarı
- 10 pcs
- Teslim Süresi
- 10 Hafta
- Katalog
- PDF Datasheet
