OLED Display
REP012864U-CTP

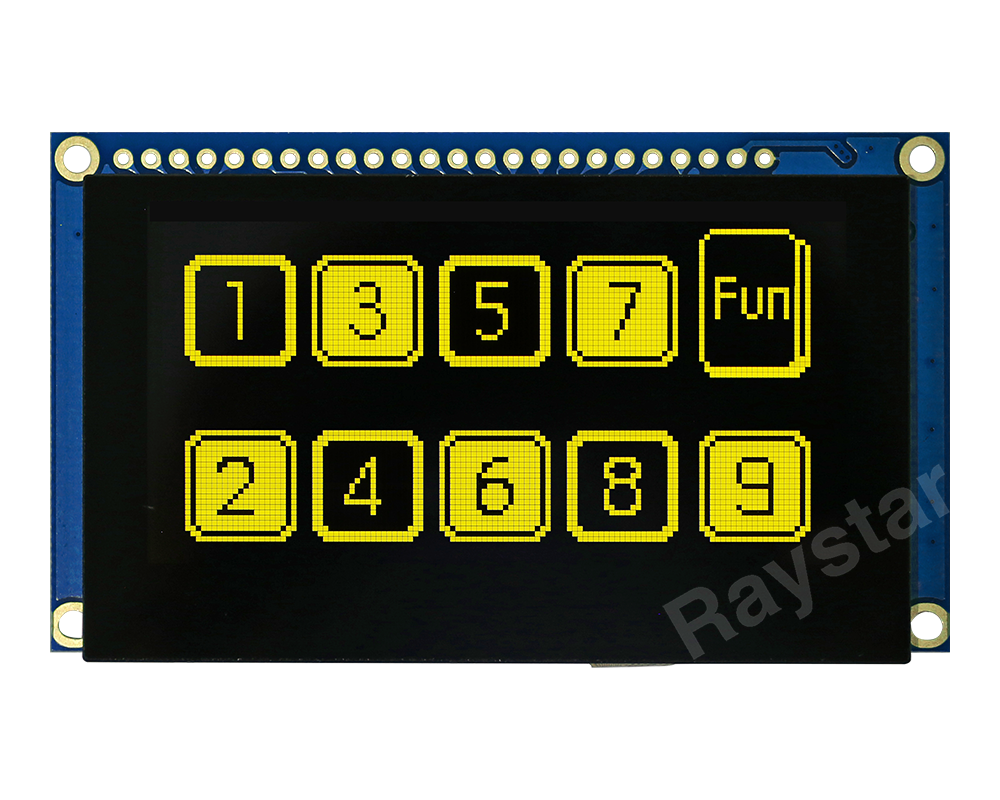

REP012864U-CTP is a dot matrix 128x64, 2.7 inch diagonal COG OLED display with capacitive touchscreen. The capacitive touch panel has built-in IC GT911, supporting 1-point touch. The size of the active area is 2.7” diagonal with module dimension 82×47.5 mm. The additional PCB on this OLED display helps users to save time on developing PCB on their own. Also, there's an added frame with four screw holes allowing users for quick mounting. REP012864UWPP3L00000
Görsel bilgi amaçlıdır. Kesin teknik özellikler için üretici datasheet'ini inceleyiniz.
Ürün Bilgileri
Temel ürün ve sipariş bilgileri
- Ürün Kodu
- REP012864U-CTP
- Marka
-
Raystar OLED
- Açıklama
- REP012864U-CTP is a dot matrix 128x64, 2.7 inch diagonal COG OLED display with capacitive touchscreen. The capacitive touch panel has built-in IC GT911, supporting 1-point touch. The size of the active area is 2.7” diagonal with module dimension 82×47.5 mm. The additional PCB on this OLED display helps users to save time on developing PCB on their own. Also, there's an added frame with four screw holes allowing users for quick mounting. REP012864UWPP3L00000
- MOQMin. Sipariş Miktarı
- 100 pcs
- MPQMin. Paketleme Miktarı
- 10 pcs
- Teslim Süresi
- 10 Hafta
- Katalog
- PDF Datasheet
Teklif İste
REP012864U-CTP için talep bilgilerinizi gönderin.
