OLED Display
REX001602BYPP5N00000

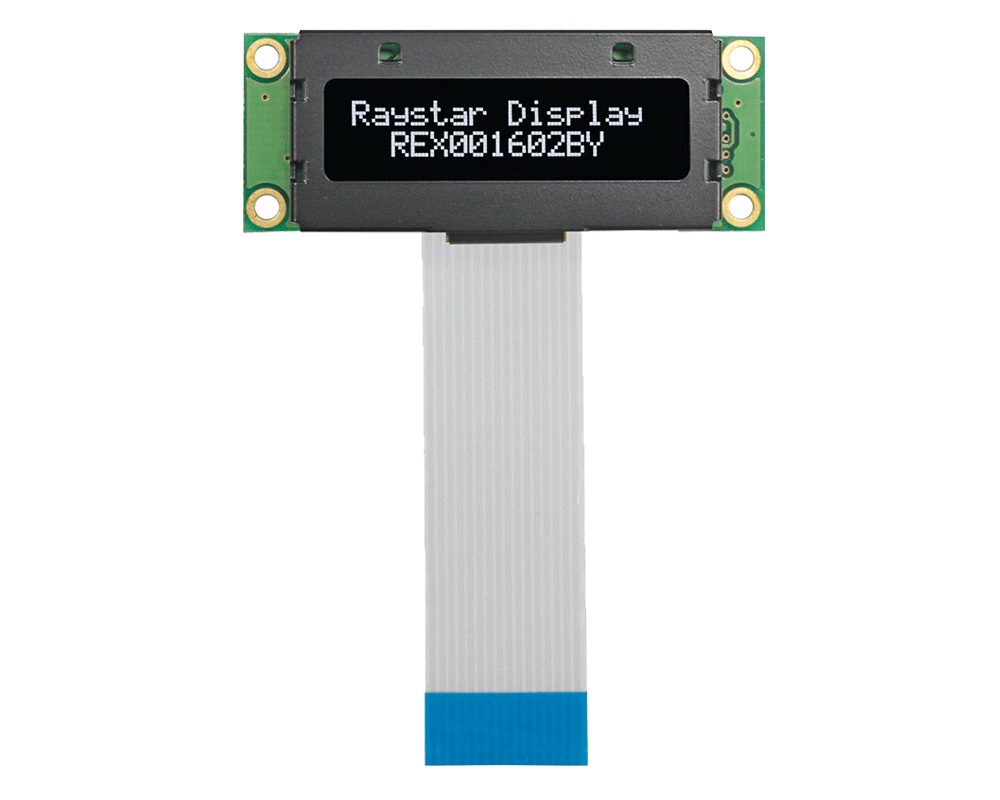

REX001602B is a 16 Characters x 2 Line COG OLED display module. The size of the active area is 1.23" diagonal with module dimension 53.0x20.0 mm. This 1.23 inches OLED COG display 16x2 has built-in IC RS0012, and boasts high contrast ratio 10,000 : 1. There are many interface options to choose from, including 6800, 8080 parallel and SPI, I2C serial interface. Logic supply voltage ranges from 4.8V-5.3V, the typical value is 5V. The module can operate within the range of -40ºC to +80ºC; storage temperature ranges from -40ºC to +85ºC. REX001602BYPP5N00000 REX001602BYPP5N00100 REX001602BYPP3N00000
Görsel bilgi amaçlıdır. Kesin teknik özellikler için üretici datasheet'ini inceleyiniz.
Ürün Bilgileri
Temel ürün ve sipariş bilgileri
- Ürün Kodu
- REX001602BYPP5N00000
- Marka
-
Raystar OLED
- Açıklama
- REX001602B is a 16 Characters x 2 Line COG OLED display module. The size of the active area is 1.23" diagonal with module dimension 53.0x20.0 mm. This 1.23 inches OLED COG display 16x2 has built-in IC RS0012, and boasts high contrast ratio 10,000 : 1. There are many interface options to choose from, including 6800, 8080 parallel and SPI, I2C serial interface. Logic supply voltage ranges from 4.8V-5.3V, the typical value is 5V. The module can operate within the range of -40ºC to +80ºC; storage temperature ranges from -40ºC to +85ºC. REX001602BYPP5N00000 REX001602BYPP5N00100 REX001602BYPP3N00000
- MOQMin. Sipariş Miktarı
- 100 pcs
- MPQMin. Paketleme Miktarı
- 10 pcs
- Teslim Süresi
- 10 Hafta
- Katalog
- PDF Datasheet
Teklif İste
REX001602BYPP5N00000 için talep bilgilerinizi gönderin.
