OLED Display
REX009616B

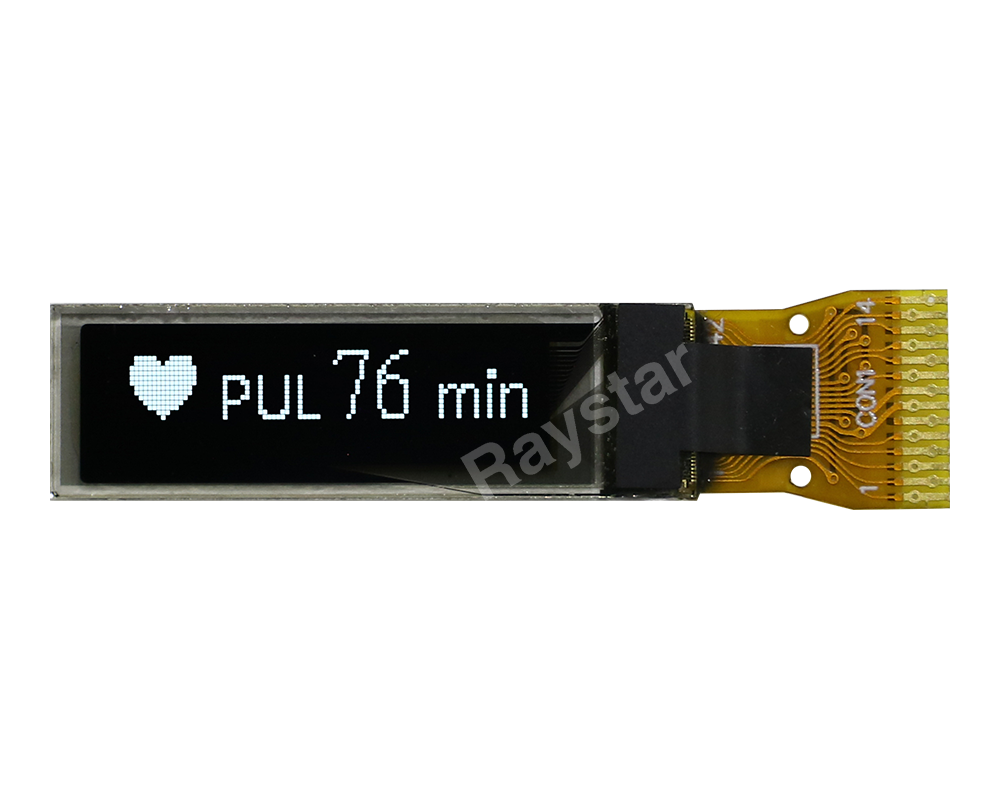

REX009616B is mini OLED display module in our product line; the diagonal size is only 0.69 inches. This OLED has resolution of 96x16 pixels, using SSD1306 IC. Our OLED boasts high contrast ratio 10,000 : 1 making the visual performance stand out from traditional displays. The mini 0.69 inch OLED screen supports I2C interface. Logic supply voltage ranges from 1.65V-3.3V, the typical value is 3V. The module works within temperature from -30ºC to +70ºC; Storage temperature range is -30ºC to +70ºC.
Görsel bilgi amaçlıdır. Kesin teknik özellikler için üretici datasheet'ini inceleyiniz.
Ürün Bilgileri
Temel ürün ve sipariş bilgileri
- Ürün Kodu
- REX009616B
- Marka
-
Raystar OLED
- Açıklama
- REX009616B is mini OLED display module in our product line; the diagonal size is only 0.69 inches. This OLED has resolution of 96x16 pixels, using SSD1306 IC. Our OLED boasts high contrast ratio 10,000 : 1 making the visual performance stand out from traditional displays. The mini 0.69 inch OLED screen supports I2C interface. Logic supply voltage ranges from 1.65V-3.3V, the typical value is 3V. The module works within temperature from -30ºC to +70ºC; Storage temperature range is -30ºC to +70ºC.
- MOQMin. Sipariş Miktarı
- 100 pcs
- MPQMin. Paketleme Miktarı
- 10 pcs
- Teslim Süresi
- 10 Hafta
- Katalog
- PDF Datasheet
