OLED Display
REX009632B

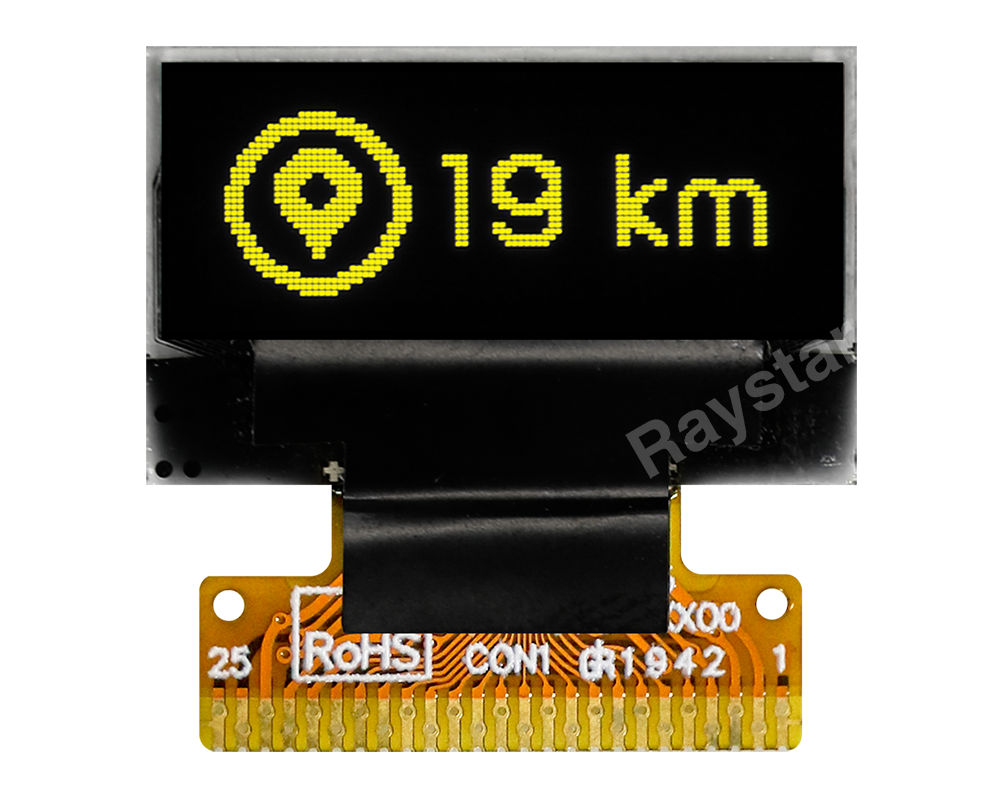

REX009632B is a dot matrix 96x32 graphic type OLED module. The size is small—only 0.68” diagonal with module dimension 19.8x12.32mm. This 96x32 OLED module has built-in IC SSD1305, and boasts high contrast ratio 10,000 : 1. There are many interface options to choose from, including 8-bits 6800/8080 parallel interface, 4-line SPI, and I2C serial interface. Logic supply voltage ranges from 2.8V-3.3V, the typical value is 3V. This series offers different types of FPC such as ZIF and Hotbar FPC. The available emitting colors are white and yellow.
Görsel bilgi amaçlıdır. Kesin teknik özellikler için üretici datasheet'ini inceleyiniz.
Ürün Bilgileri
Temel ürün ve sipariş bilgileri
- Ürün Kodu
- REX009632B
- Marka
-
Raystar OLED
- Açıklama
- REX009632B is a dot matrix 96x32 graphic type OLED module. The size is small—only 0.68” diagonal with module dimension 19.8x12.32mm. This 96x32 OLED module has built-in IC SSD1305, and boasts high contrast ratio 10,000 : 1. There are many interface options to choose from, including 8-bits 6800/8080 parallel interface, 4-line SPI, and I2C serial interface. Logic supply voltage ranges from 2.8V-3.3V, the typical value is 3V. This series offers different types of FPC such as ZIF and Hotbar FPC. The available emitting colors are white and yellow.
- MOQMin. Sipariş Miktarı
- 100 pcs
- MPQMin. Paketleme Miktarı
- 10 pcs
- Teslim Süresi
- 10 Hafta
- Katalog
- PDF Datasheet
Teklif İste
REX009632B için talep bilgilerinizi gönderin.
